HA Series Loaders

All loader kits include loader, 3rd service, subframe, hydraulic kit to suit and 4in1 bucket. Loaders are self levelling. All Buckets are 4 in 1 Euro Hitch.

KUBOTA

Tractor



Loader  Reference
L3200 / 3800 HA 1600    QU-HKU-L3200-1600
L4600 HA 1950 QU-HKU-L4600-1950
M5100 HA 2150 QU-HKU-MX5100-2150

 All tractors fitted with a Howard HA Series loader should be equiped with a 3 point linkage counter weight as recommended in the rated operating load database.

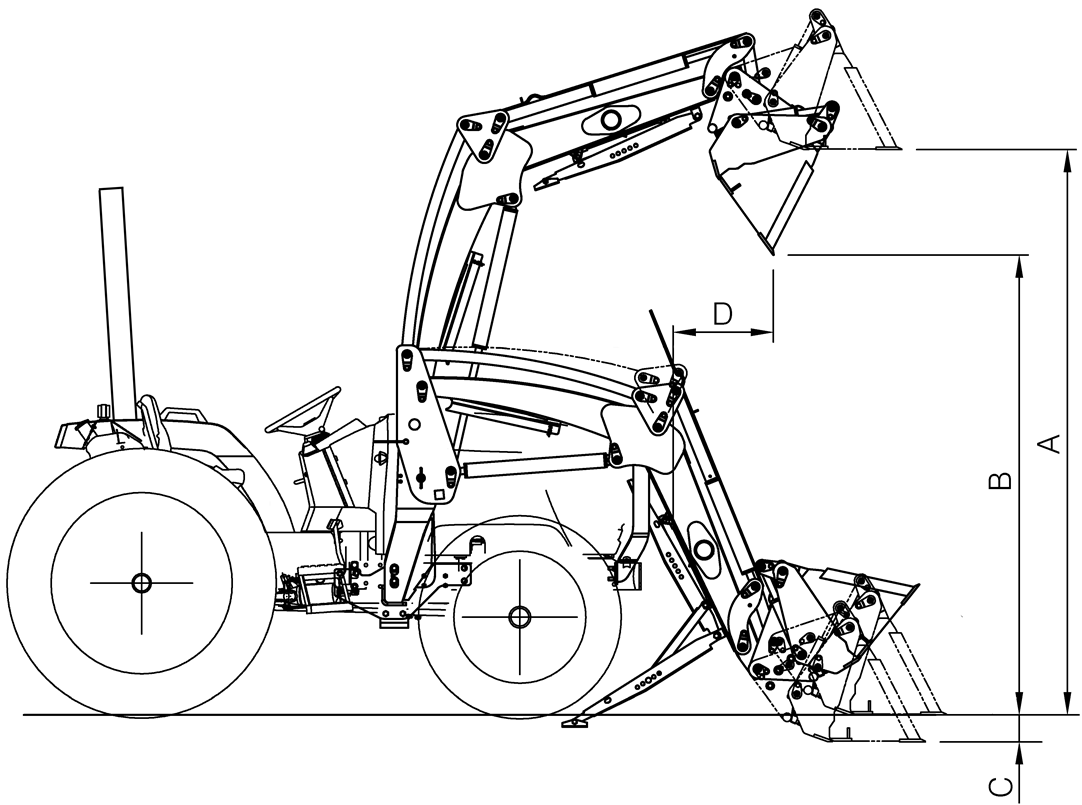

 GENERAL LAODER SPECIFIATIONS

Loader

A

(mm)

B

(mm)

C

(mm)

D

(mm)

Bucket Width

(mm)

Shipping

Weight

(kg)

Rated Operting

Load

(kg)

Counterweight

Required (kg)

HA 1600

2435 1890 430 100 1570 540 380 300
HA 1950 2400 1870 395 180 1570 585 580 400
      HA 2150         2514       1924        285         210        1700         880         630         800

All specifications are general and based on 4 in 1 bucket fitted. All dimensions are in (mm) milimetres. All weight is in (kg) kilograms. All buckets are 4in1 Euro Hitch.
All Rated Operating Loads stated are based on appropritate Counter Weight being fitted. Specifications may change without notice.
